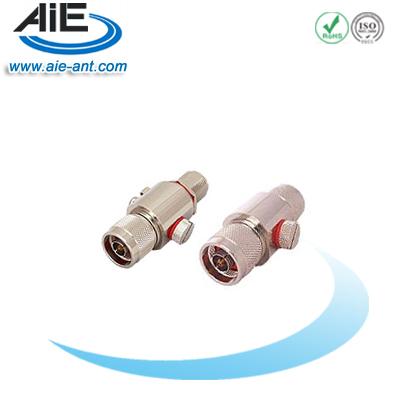

Model No.︰AIE-LA-02
Brand Name︰AIE
Country of Origin︰China
Unit Price︰US $ 10 / pcs
Minimum Order︰10 pcs
●Electrical Specifications:
Frequency Range DC-6000MHz
VSWR ≤1.1
Insert loss ≤0.2
Impedance 50Ω
Discharge Voltage DC230V±15%
Puls Voltage (1x40)us 1000V
Puls Current (1x40)us 6 KA
Resistance at 100V >10,000MΩ
Maximum Input Power 200W
Input Connector N
●Mechanical Specifications:
Antenna Dimension 65×31×25mm
Weight 130g
Price Terms︰ EX-WORK
Payment Terms︰ TT
Packing︰ 10PCS/BOX
Lead Time︰ 5-7 DAYS AFTER PAYMENT
